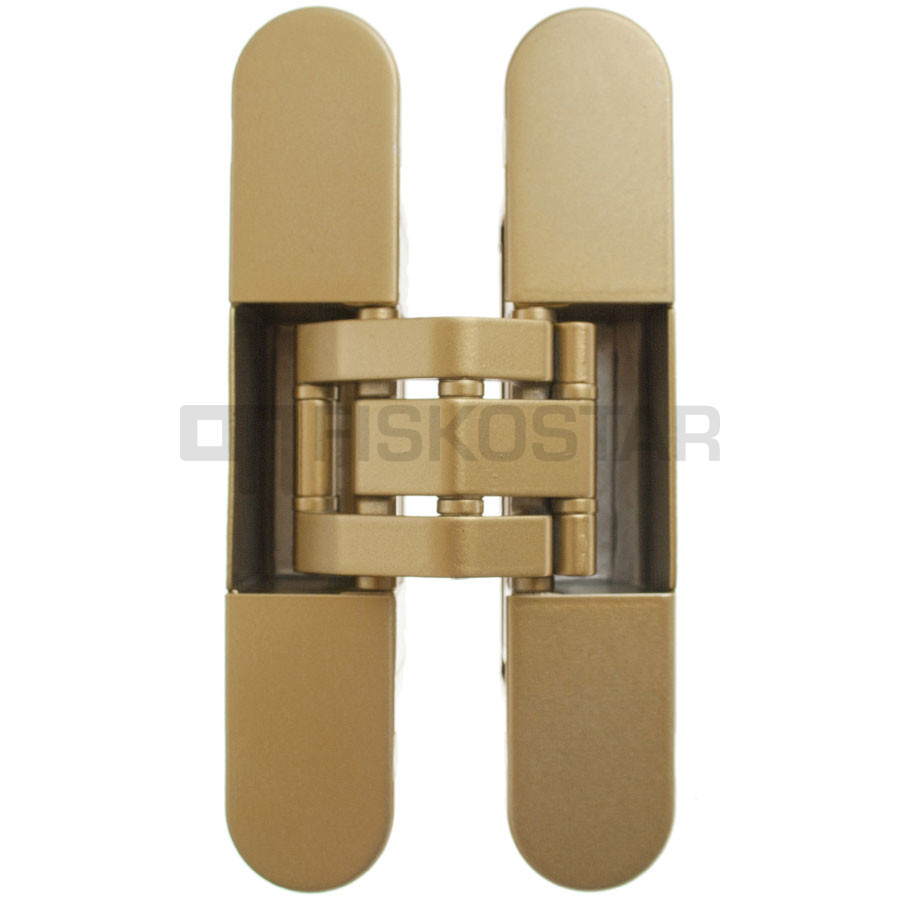

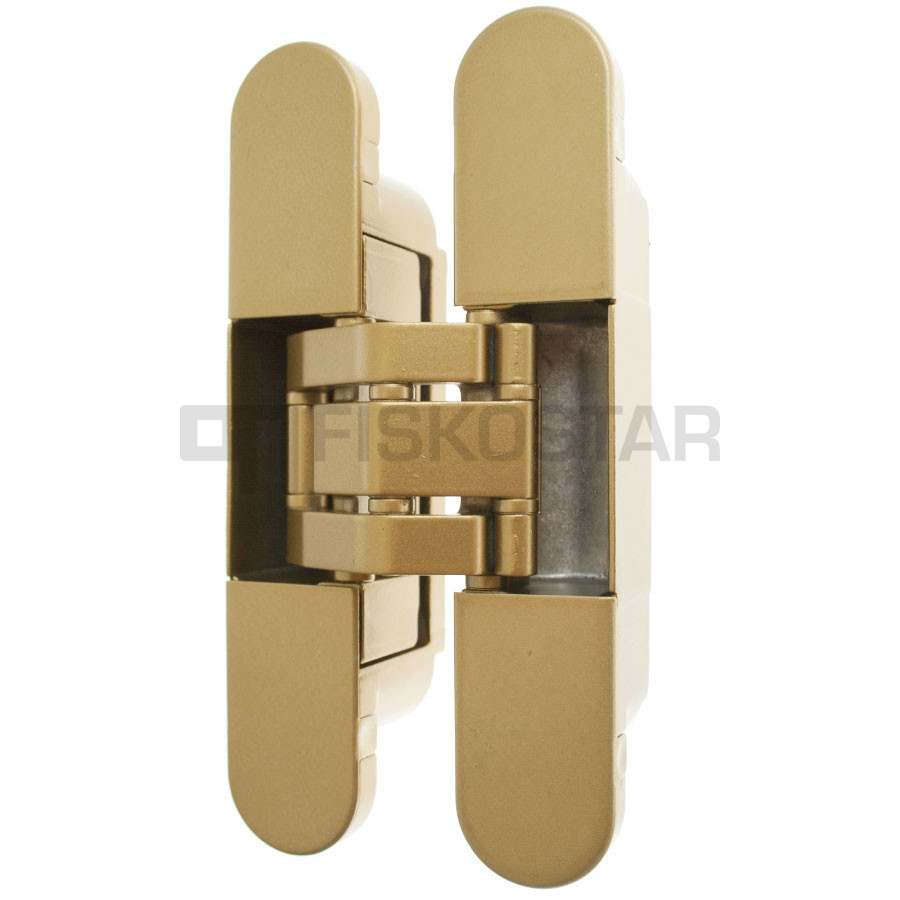

Concealed hinge with 4 covers INVISACTA 120x23 mm 3D HME

In Stock

Product code:	PH230 3D Al/HME OTL
Surface:	coloured satin brass
Price (incl VAT):	45.53 €
Unit:	piece
Material:	zamac/aluminium

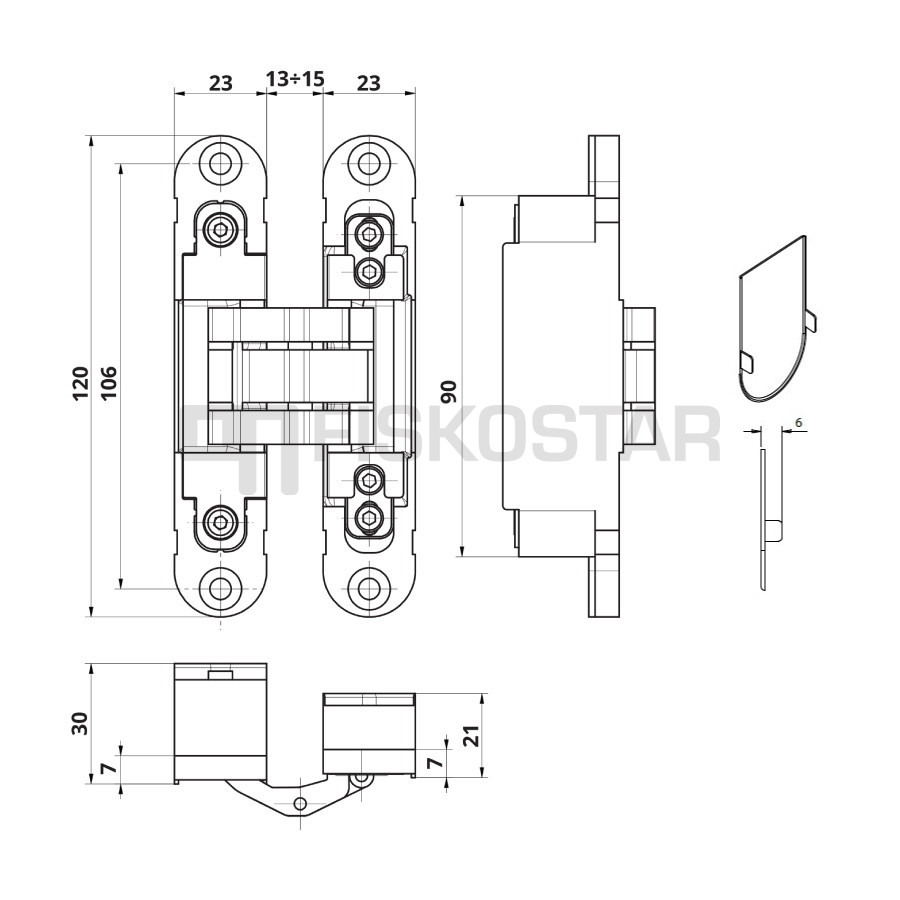

Description:	The hinge is suitable to be installed on doors and frames in wood and aluminium The hinge can be fitted right and left. Equipped with 3-way adjustments that can be settled by means of just one 3 mm hexspanner. Technical data: Door opening angle 180° Side adjustment ± 1 mm Height adjustment ± 2 mm Depth adjustment ± 1 mm * Tested with 900x2100 mm doors Load capacity: 2 hinges*= 60 kg
Documents:	6205_PH230_ENG.pdf (371.54 KB) 8851_Declaration_of_performance_PH230_ENG.pdf (29.95 KB) 9180_Fitting_instructions_PH230_ENG.pdf (1.25 MB) 4164_Load_capacity_table_PH230_ENG.pdf (340.91 KB)
