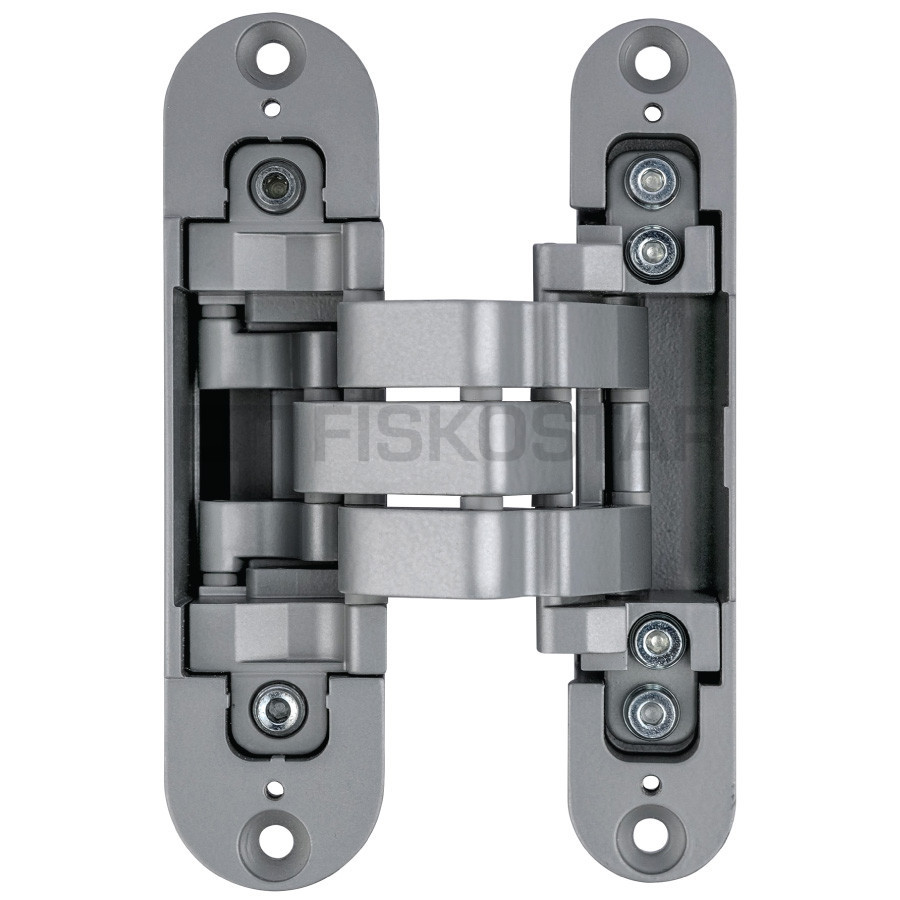

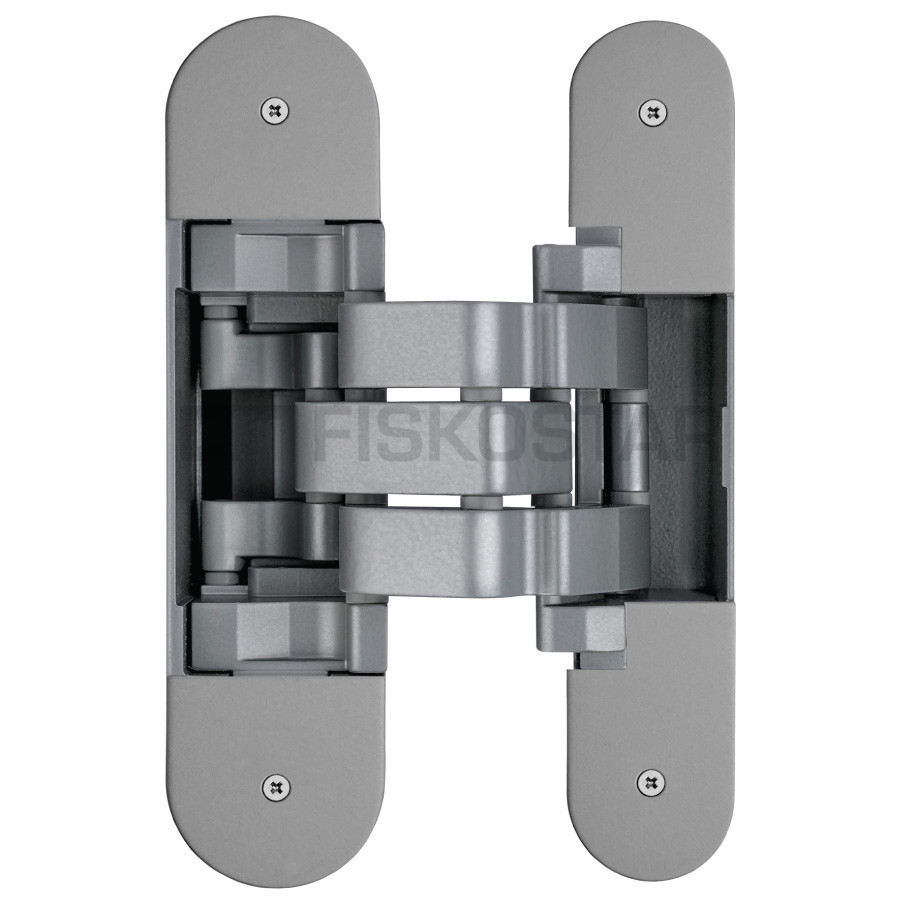

| Product code: | PH570 3D Al/MNI OTL |
| Surface: | satinized nickel plated |
| Price (incl VAT): | 59.43 € |
| Unit: | piece |
| Material: | zamak/aluminium |
| Description: |

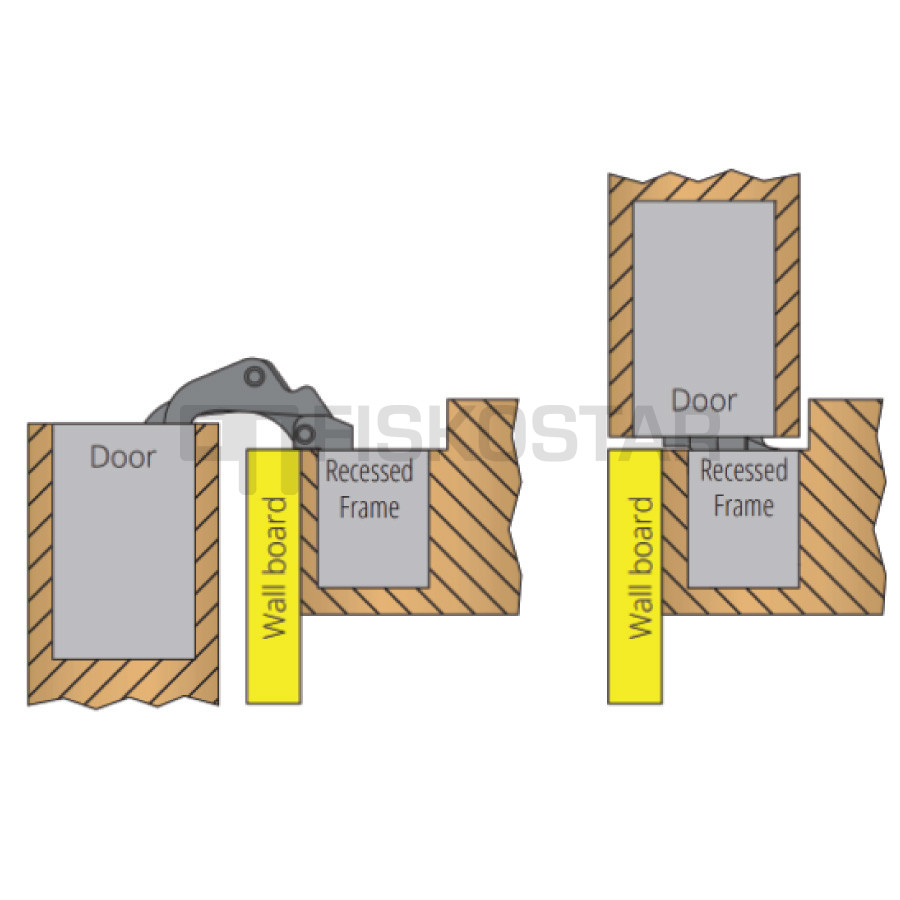

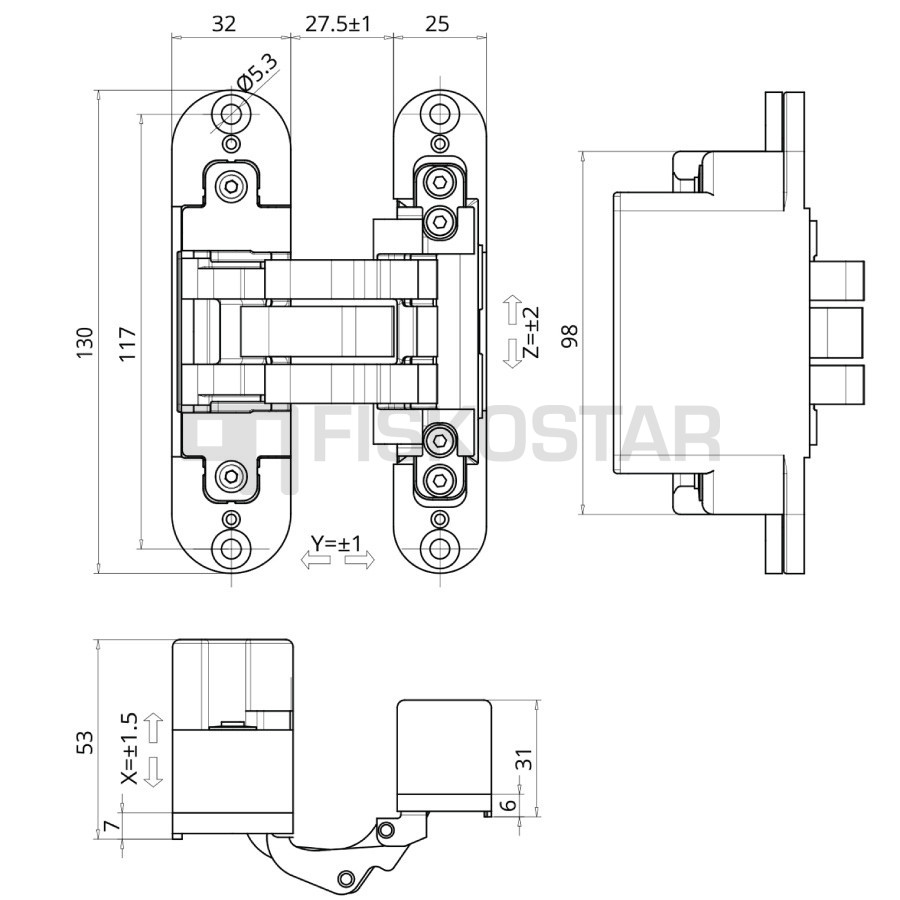

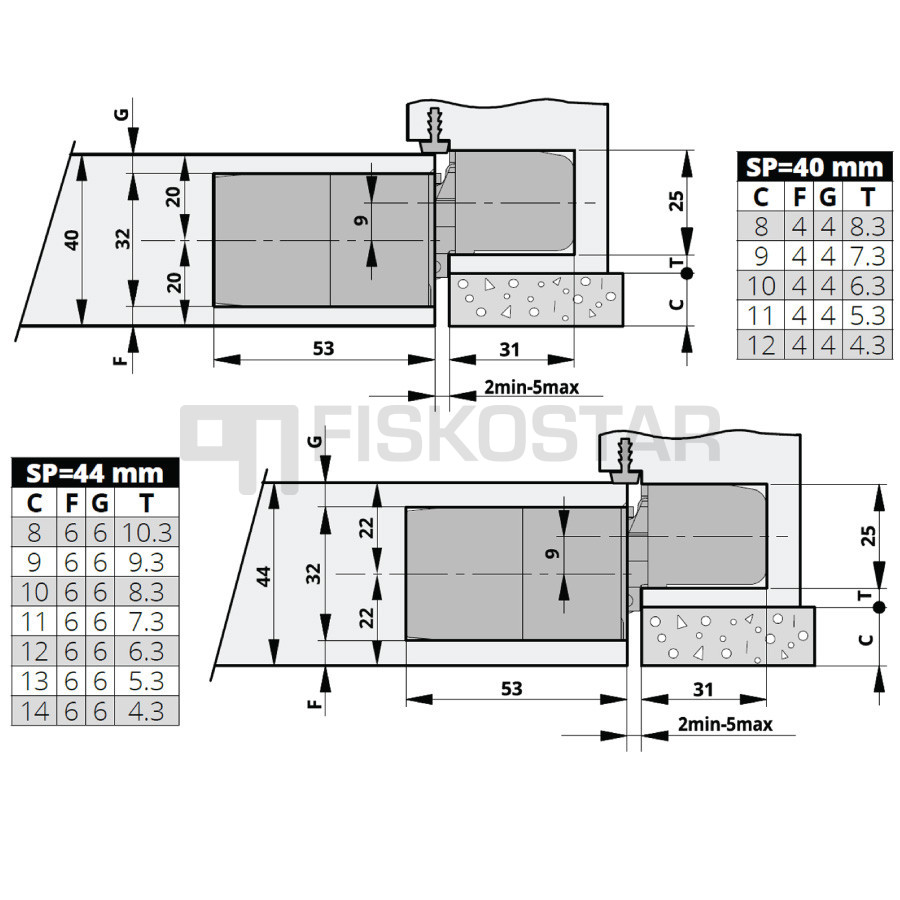

The hinge is suitable to be installed on doors and frames in wood and aluminium The hinge can be fitted right and left. Equipped with 3-way adjustments that can be settled by means of just one 3 mm hexspanner. The hinge can be installed with mounted gasket Technical data: Door opening angle 180° Side adjustment ± 1,5 mm Height adjustment ± 2 mm Depth adjustment ± 1 mm Load capacity: 2 hinges*= 60 kg. * Tested with 900x2100 mm doors |
| Documents: | 318_IN570-CERTIFICATION-ENG.pdf (31.75 KB) 7372_IN570-TECHNICAL-SHEET-ENG.pdf (251.98 KB) 5165_IN570-LOAD-CAPACITY-TABLE-ENG.pdf (263.92 KB) 7013_IN570-FITTING-INSTRUCTIONS-ENG.pdf (2.60 MB) |
