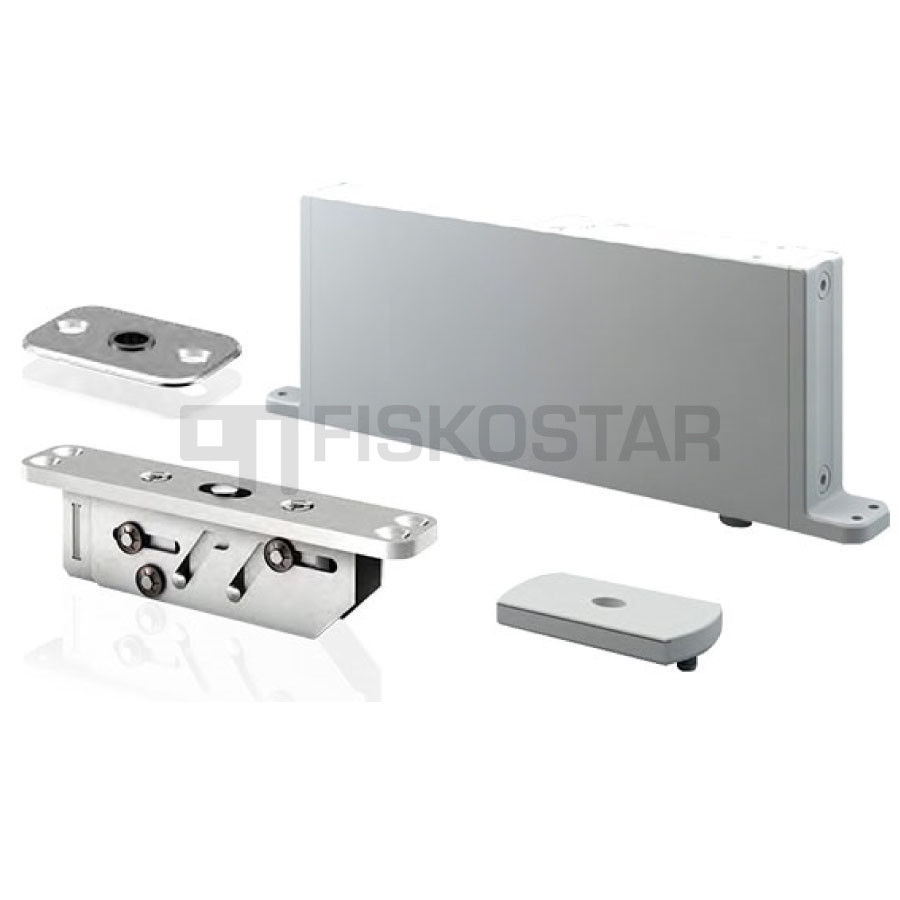

FritsJurgens® KIT M32-SCB Complete set SystemM SCB with accessories

Ask for availability
Product code: PH M32-SCB RST
Surface: stainless steel
Price (incl VAT): 1022.97 €
Unit: piece
Description:

System M reversal hinge system fits to large, heavy and high doors.

System M hinges are:

  • the hinges are not fixed to the side of the door, but up and down, forming an invisible vertical axis
  • the system is fully integrated into the door leaf
  • only small tiles go to the ceiling and floor
  • suitable for inner-door and front door
  • load capacity: up to 159 kg
  • attributes: rotating, closing, fixative, soft-closing
  • rotation angle: -125° ja 125°

  • fixing points: 0º, 90º, -90º, 270º
  • adjustable self-closing in range of -125° ja 125°
  • hinge can also be installed in pivoting floor-to-ceiling-height doors
  • min. door thickness: 40 mm (system thickness: 34 mm)
  • distance to the frame of the door from the hinge is min. 91 mm; max. 1/2 door leaf

System M is made with the highest quality materials. It's also a maintenance free and with the highest corrosion resistance (standard EN 1154, class 4).

Testing has shown that System M will continiue working flawlessly even after 1 million cycles.

For suitable System M look our type selector table here and follow steps:

Step 1: determine A- rotation angle distance from the side of the door
Step 2: determine C- total door width
Step 3: determine KG- weight of the door
Step 4: determine which system fits for your door

You can also watch the introduction video of System M here
Also watch a System M installation video here

Documents: 7146_SystemM_technical_informationpdf.pdf (3.28 MB) 4914_SystemM_milling_manual.pdf (952.52 KB) 9917_SystemM_mounting_manual.pdf (1.29 MB)
