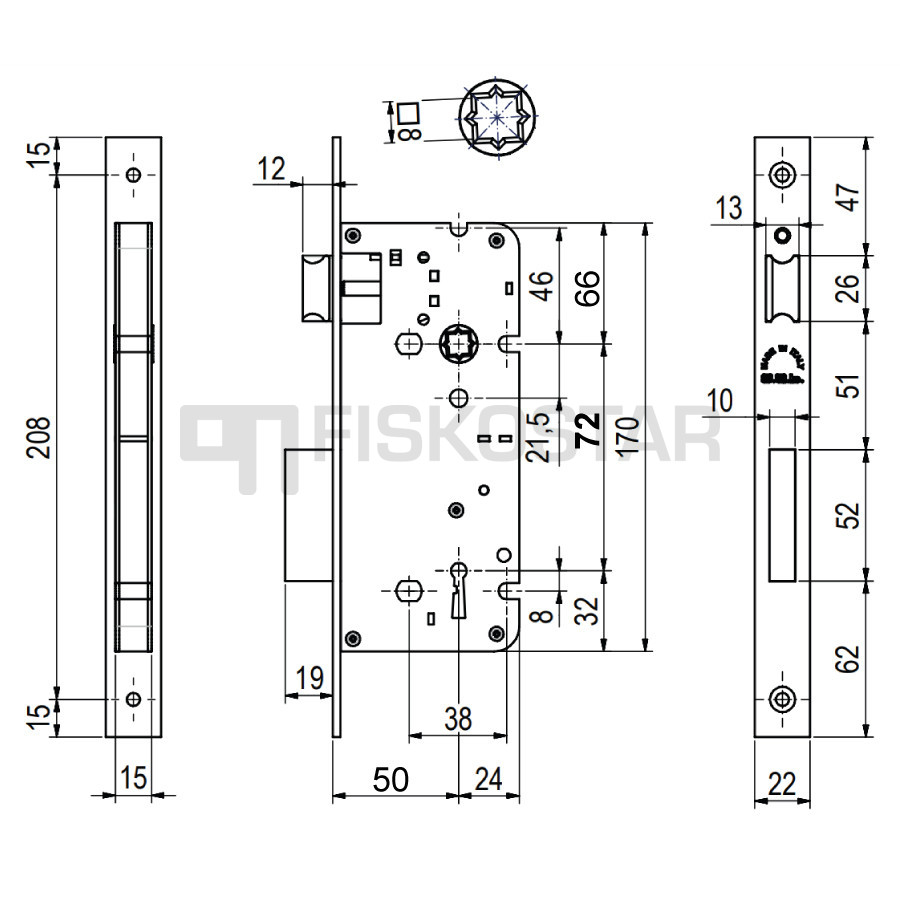

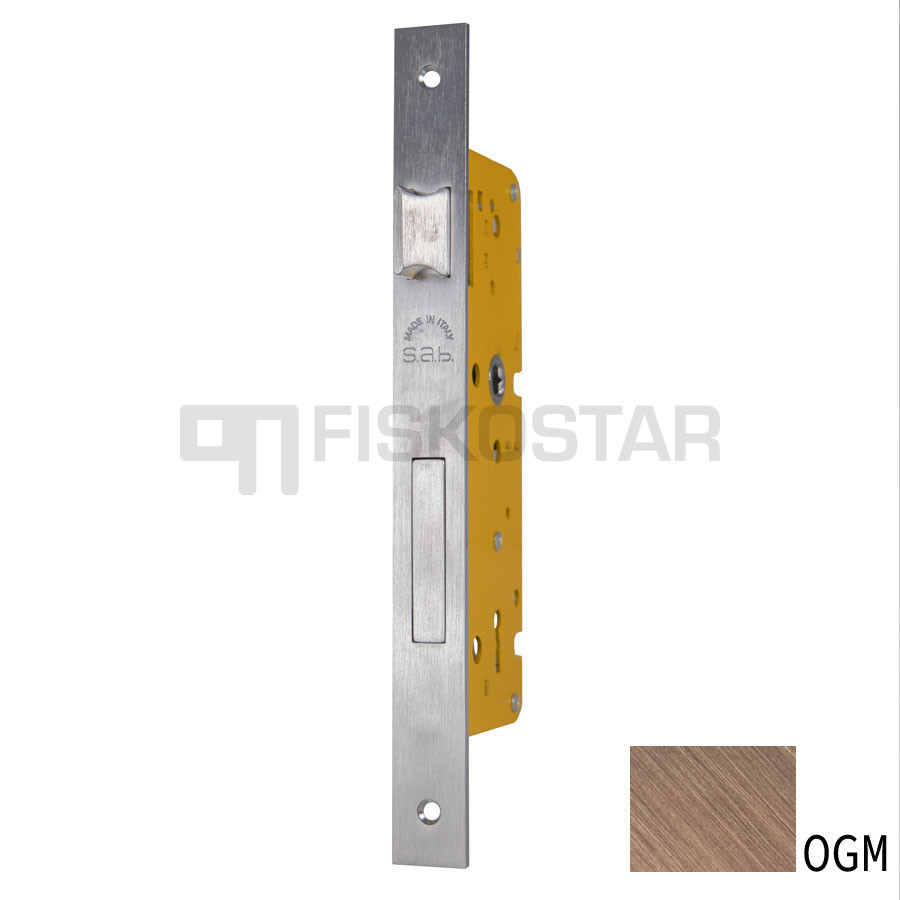

Lock case 2260 ARABIC BB/90/50/22 OGM + straight striker plate 357

Raw material: steel

Front plate raw material: brass

Lock case is suitable for euro (E) fastened handles and keyhole escutcheons.

Suitable for non-rebated internal doors.

Lock case can be locked with a simple key.

Suitable for left and right handed doors.

Lock tongue: brass

Front plate width: 22 mm

Backset: 50 mm

Interax: 90 mm

Lock case has a square front plate.

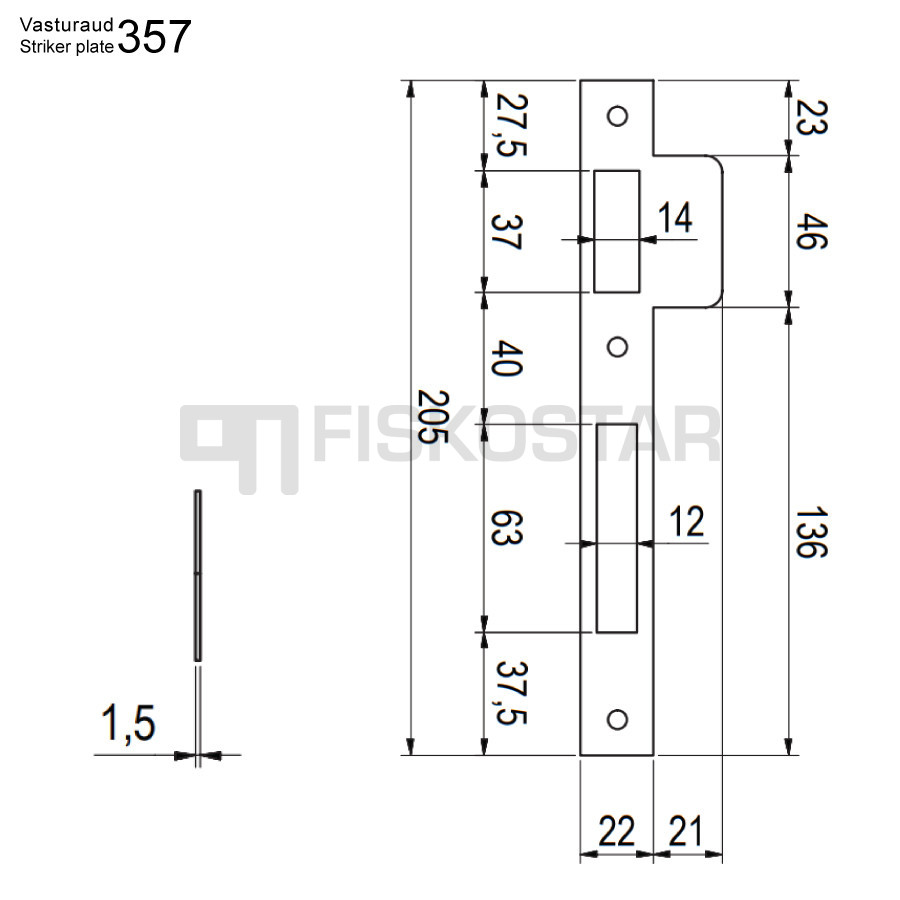

Set includes striker plate.

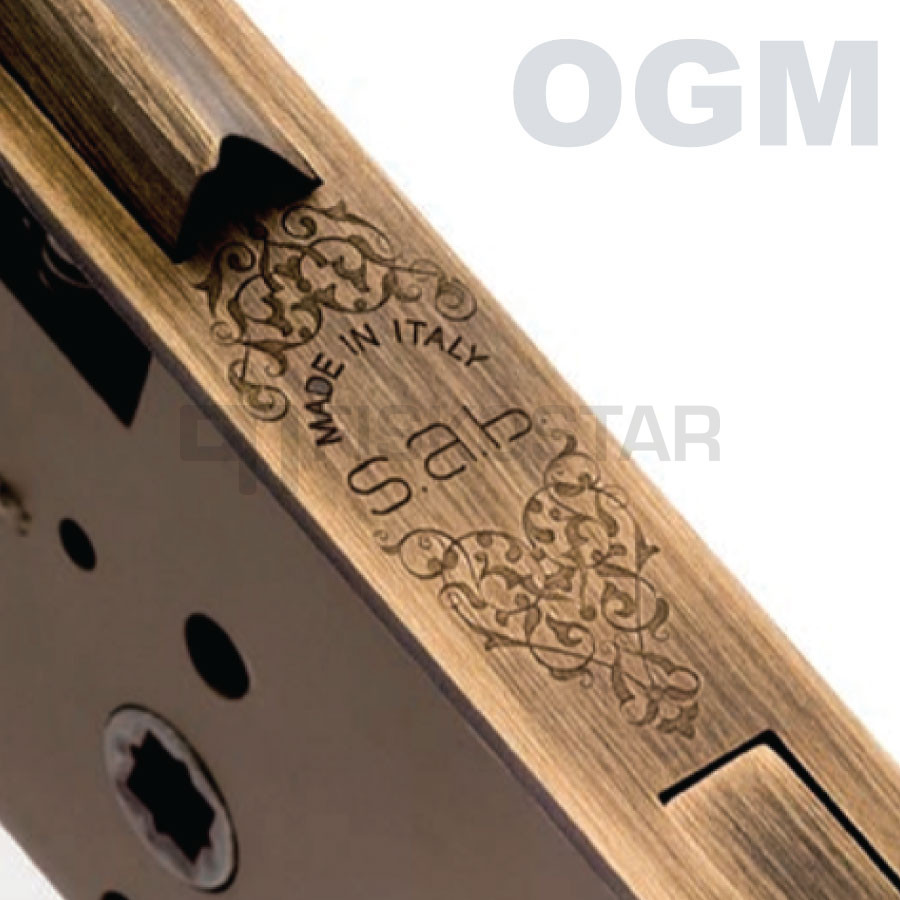

The front plate of lock case is decorated with engravings. There are no engravings on striker plate.

Lock case can be ordered with 40, 45, 50, 55, 60, 70 and 80 mm backset.

Lock case is also available with 72, 85 and 90 mm interax.
